Architectural Structures
Tensile ShedManufacturer in Gurgaon, India
Aesthetic membrane canopy structures for weather protection
01 / 07
Quick answer
What is a tensile shed?

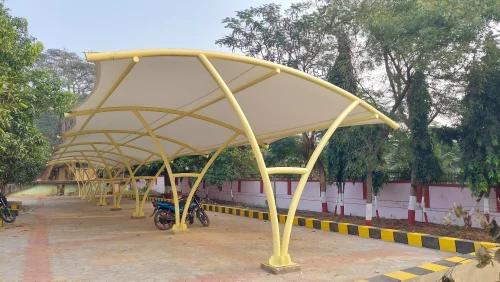

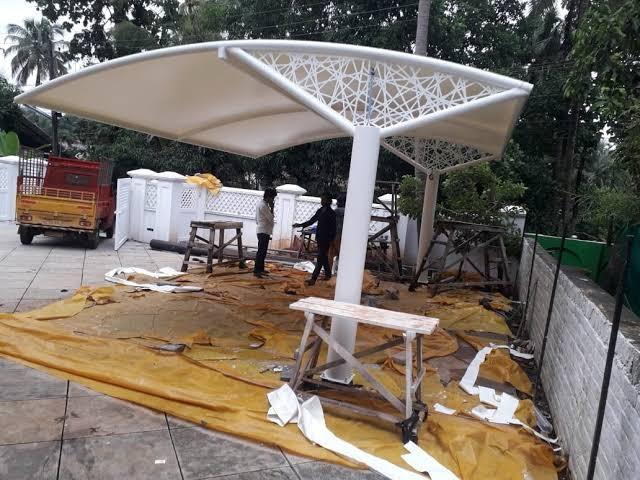

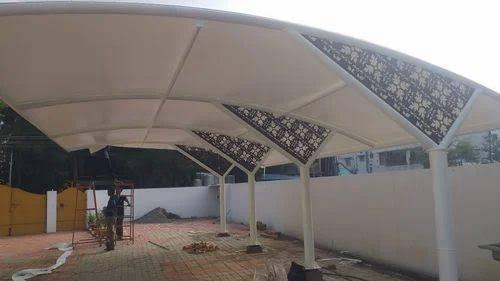

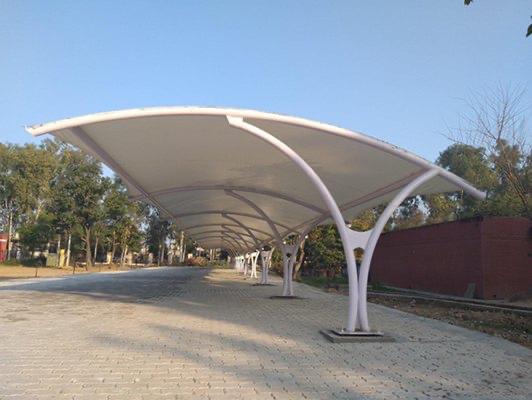

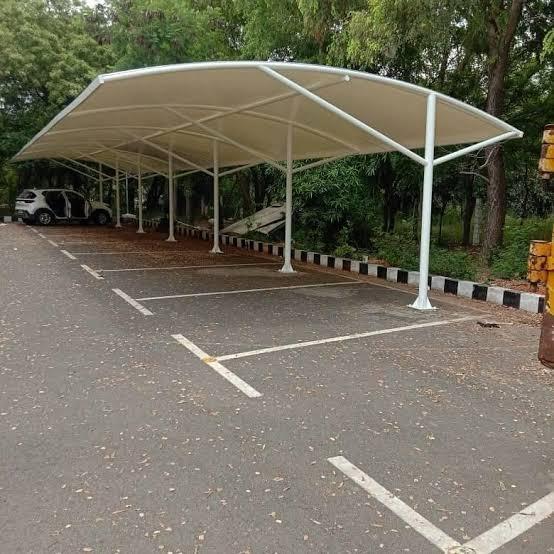

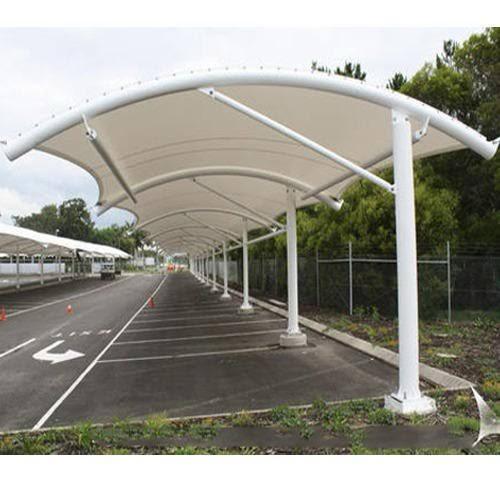

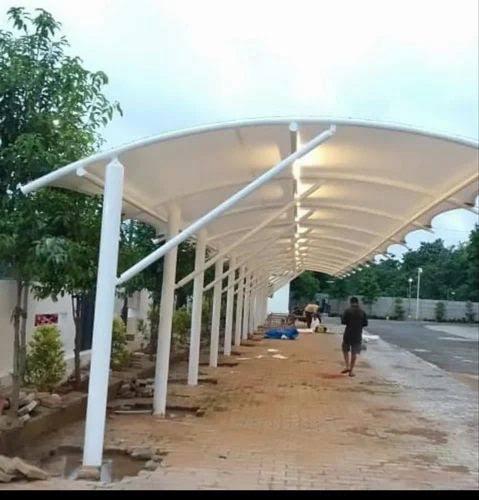

A tensile shed is a fabric membrane structure stretched over a steel frame to provide shade and weather protection. U.S.T Enterprises designs, fabricates and installs PVC/PVDF tensile structures for car parking, walkways, schools and factories, typically ₹200-450 per sq ft, with 7-15 year membrane warranty and spans up to 60 m.
Tensile Shed - overview
Custom Tensile Shed manufacturer and supplier. Modern tensile fabric structure designed for versatile outdoor coverage including car parking, walkways, and recreational areas. Features high-strength membrane materials stretched over steel framework to create elegant, curved architectural forms.
- Membrane Material
- PVC/PVDF/PTFE coated polyester fabric
- Fabric Weight
- 700-1500 GSM
- Fabric Thickness
- 0.05-0.82 mm
Key features
- High-strength tensile fabric membrane construction
- UV-resistant and weatherproof material coating
- Galvanized steel framework with powder coating
- Self-cleaning fabric surface with anti-fungal properties
- Natural light transmission while blocking harmful UV rays
- Wind load resistance up to 169.2 km/h (47 m/s)
- Fire retardant membrane meeting B1/DIN 4102 standards
- Modular design for easy installation and expansion
- Temperature resistance from -50°C to +70°C
- Low maintenance with excellent durability
Talk to an engineer about this machine
Share your capacity and application - we reply within 24 hours.
Direct manufacturer
Built in IMT Manesar since 1970
Made to your spec
Capacity, MS / SS304 / SS316, automation
Pan-India installation
Erection, commissioning & training
Factory pricing
No middlemen, GST invoice
Datasheet
Tensile Shed technical specifications
Specifications vary by model. Custom sizes and capacities are available on request.
Last reviewed:
| Membrane Material | PVC/PVDF/PTFE coated polyester fabric |
|---|---|
| Fabric Weight | 700-1500 GSM |
| Fabric Thickness | 0.05-0.82 mm |
| Tensile Strength | 2400-4200 N/5cm (warp/weft) |
| Tear Strength | 270-580 N |
| Frame Material | Galvanized steel (IS 1239 standard) |
| Steel Grade | YST240 as per IS 800 |
| Wind Load Capacity | 1.38 kN/m² (44 m/s) |
| Span Capability | Up to 60 meters clear span |
| Color Options | White, Red, Blue, Green, Yellow, Custom |
| Fire Rating | B1/DIN 4102 compliant |
| Warranty | 7-15 years on membrane |
| Installation Cost | ₹300-800 per sq ft |
| Maintenance | Self-cleaning, minimal upkeep required |
Where it works
Applications & industries served
- Car parking
- Schools & colleges
- Restaurants
- Factories
- Residential societies
Part of our solutions for
Answers
Frequently asked questions about Tensile Shed
How much does a tensile car parking shade cost per sq ft?
Tensile car parking shades typically cost ₹200-450 per sq ft depending on membrane type (PVC/PVDF/PTFE), design (conical/arch/cantilever), span size, and steel frame specifications.
What designs are available for tensile structures?
We manufacture conical, arch, cantilever, hypar, umbrella, and custom-shaped tensile structures for car parking, walkways, school grounds, restaurants, swimming pools, and factory yards.
How long does a PVC tensile shed last?
PVC membrane tensile sheds come with 7-15 years warranty. The fabric is UV-resistant, waterproof, and self-cleaning, while the galvanized steel framework lasts 25+ years with minimal maintenance.
Can tensile structures withstand monsoon winds and rain?
Yes, our tensile structures are engineered for wind loads up to 169 km/h and heavy rainfall. The membrane is 100% waterproof with proper drainage slopes and fire-retardant coating (B1/DIN 4102).
Do you install tensile sheds across India?
Yes, we manufacture at our Gurgaon facility and provide design, fabrication, and installation services pan-India. Typical installation takes 7-15 days depending on size and complexity.
