Hammer MillManufacturer in Gurgaon, India
High-speed crushing and grinding for feed and grain processing
01 / 07
Quick answer
What is a hammer mill?
A hammer mill crushes and grinds material with high-speed rotating hammers, controlling particle size with a perforated screen. U.S.T Enterprises manufactures hammer mills from 5 to 100 HP producing 200-3,000 kg/hr at 0.5-15 mm fineness, for cattle and poultry feed, grain, spices, biomass and agro-waste grinding.

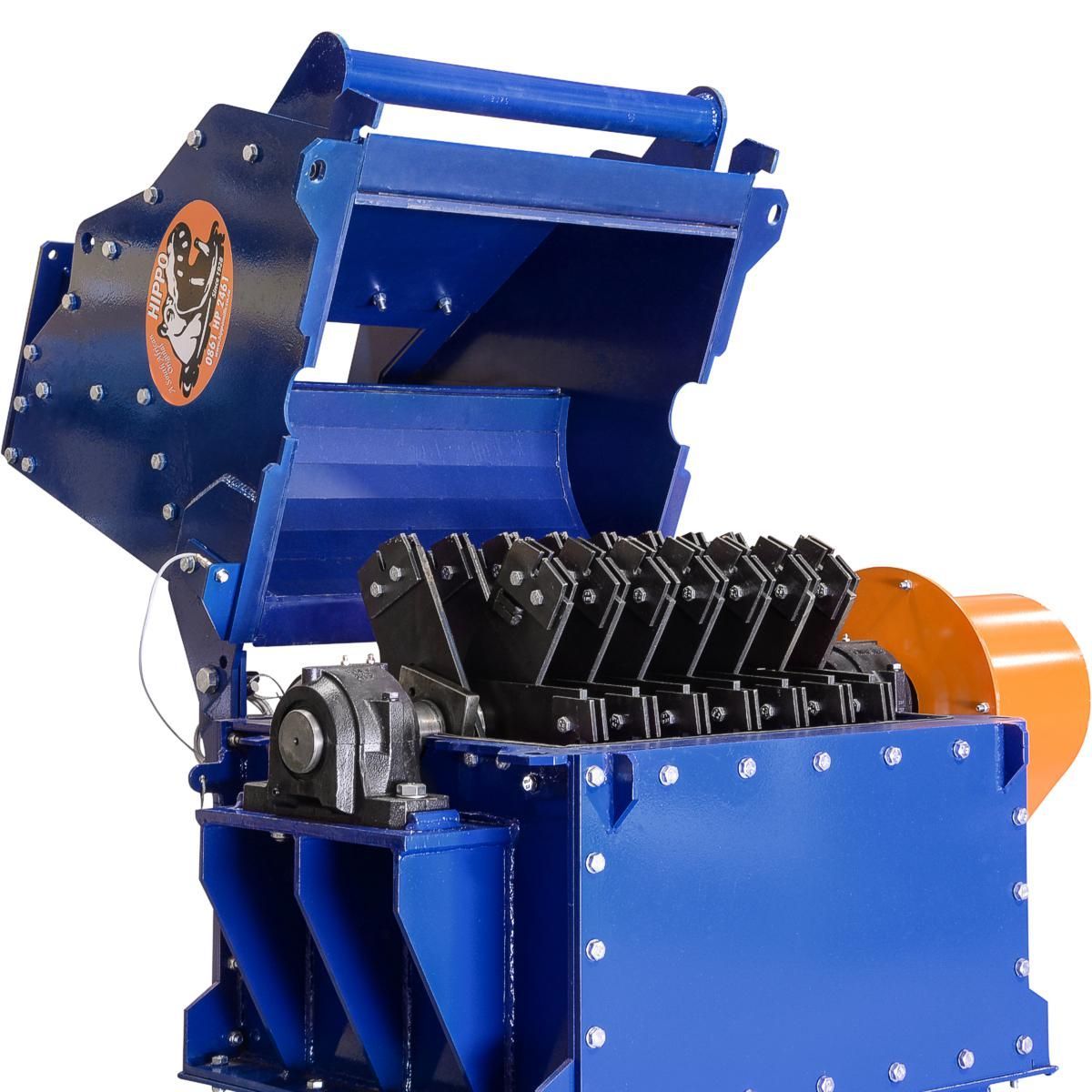

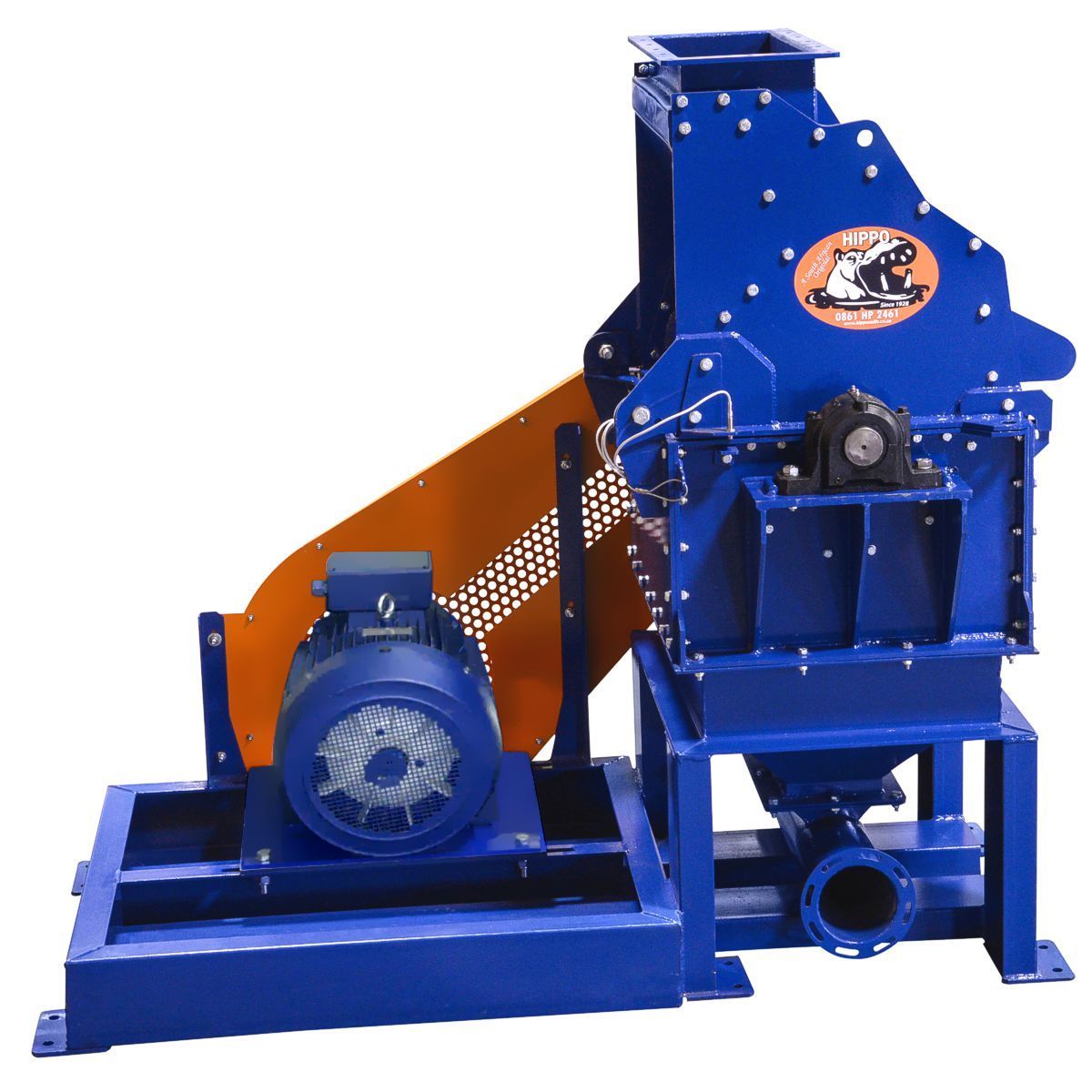

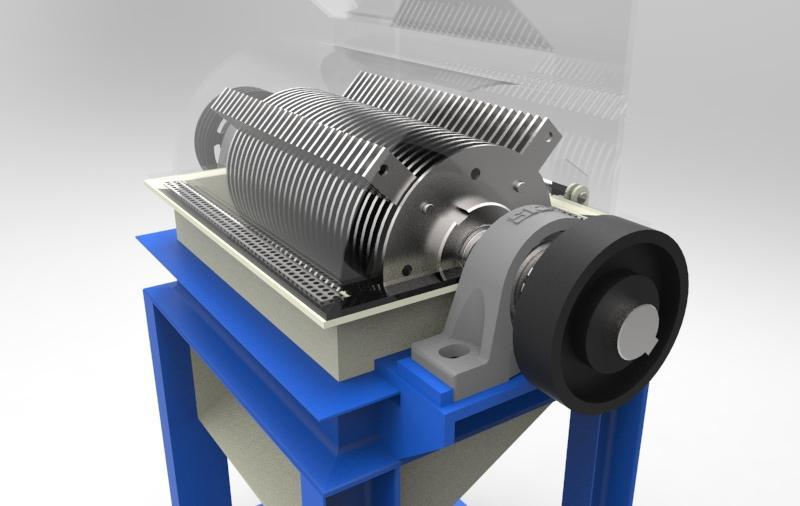

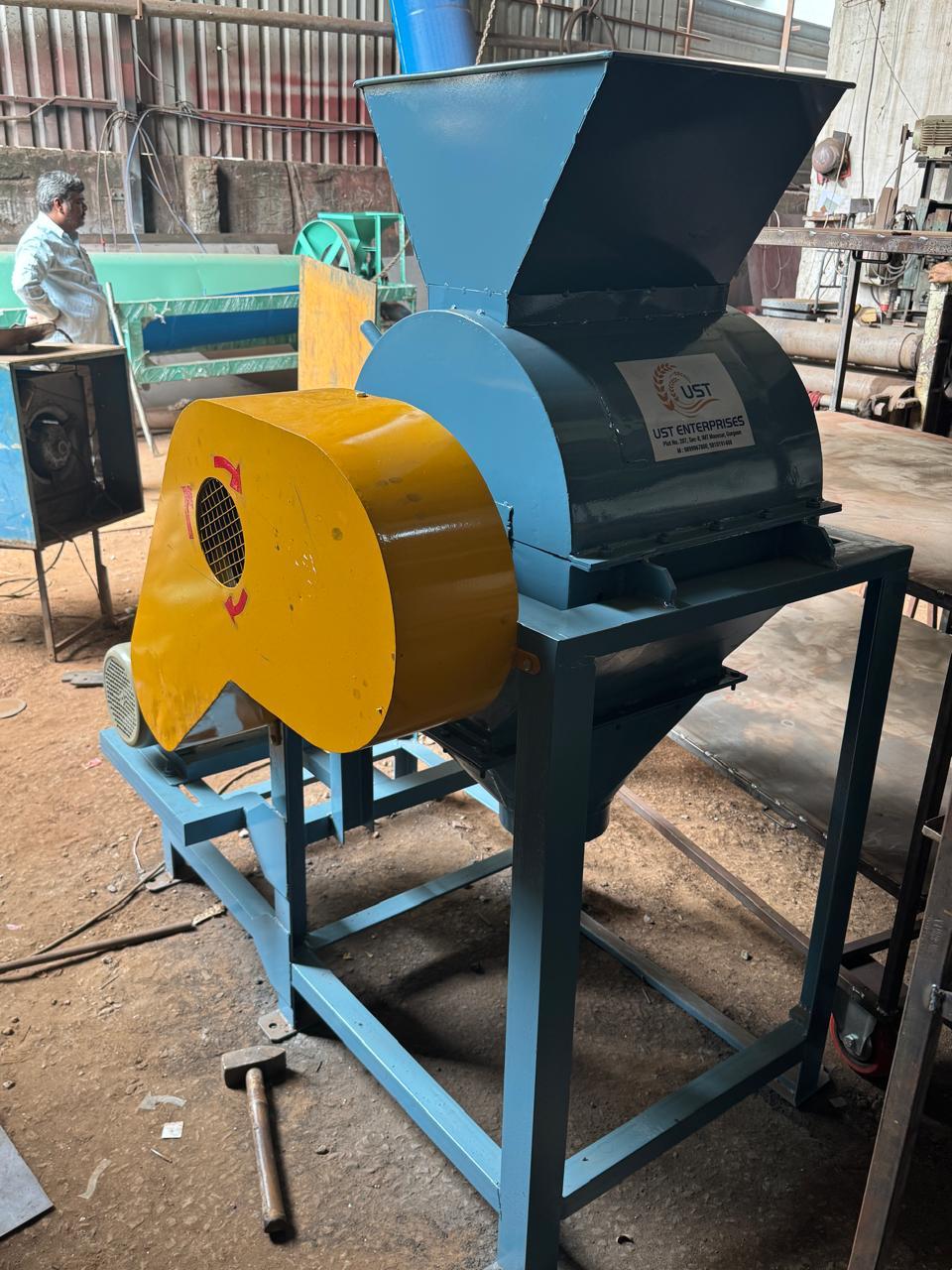

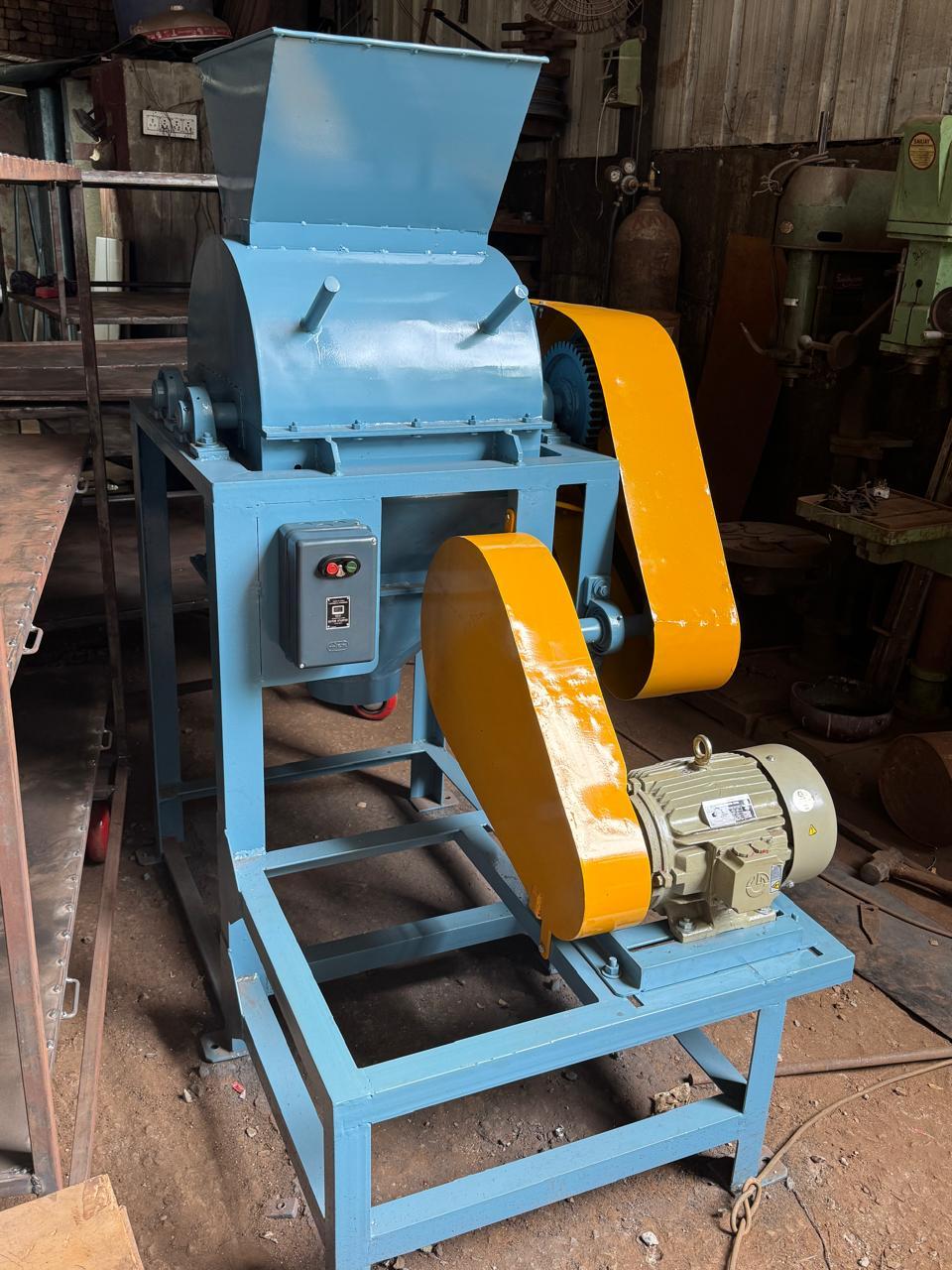

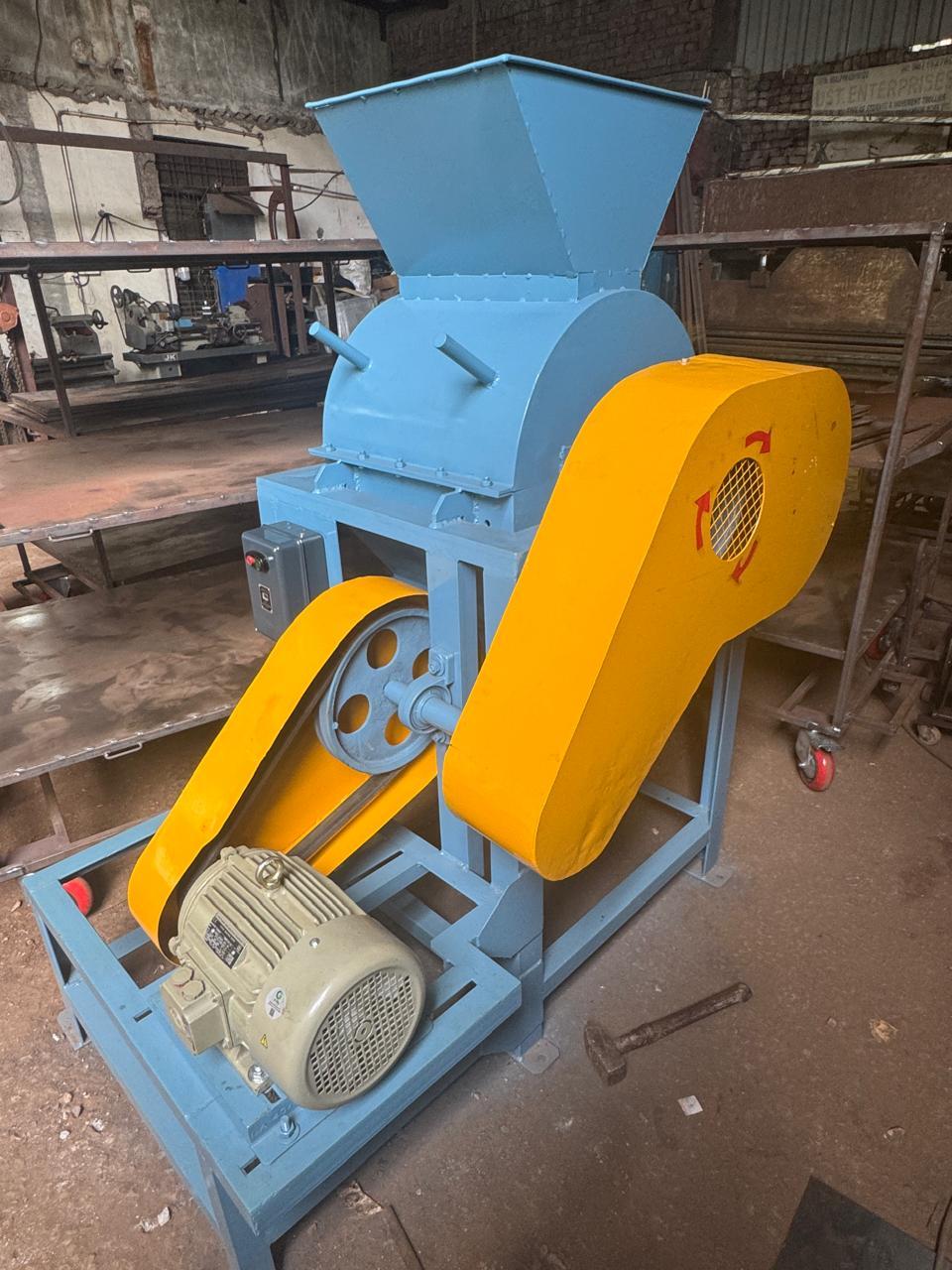

Hammer Mill - overview
Industrial Hammer Mill manufacturer. Designed for crushing and grinding various materials including grains, feed components, agricultural products, and biomass. Features high-speed rotating hammers that reduce material size through multiple impact crushing, with adjustable screen perforations for precise particle size control.
- Motor Power
- 5-100 HP (3.7-75 kW)
- Production Capacity
- 200-3000 kg/hr
- Hammer Tip Speed
- 80-100 m/sec
Key features
- High-speed rotating hammer system for impact crushing
- Interchangeable perforated screens for size control
- Free-swinging hammers to minimize wear and blocking
- Heavy-duty rotor shaft with balanced design
- Adjustable hammer-to-screen gap settings
- Dust collection system with cyclone separator
- Reversible hammers for extended service life
- Easy access doors for maintenance and screen changes
- Robust steel construction with wear-resistant linings
- Variable speed control for different materials
Talk to an engineer about this machine
Share your capacity and application - we reply within 24 hours.
Direct manufacturer
Built in IMT Manesar since 1970
Made to your spec
Capacity, MS / SS304 / SS316, automation
Pan-India installation
Erection, commissioning & training
Factory pricing
No middlemen, GST invoice
Datasheet
Hammer Mill technical specifications
Specifications vary by model. Custom sizes and capacities are available on request.
Last reviewed:
| Motor Power | 5-100 HP (3.7-75 kW) |
|---|---|
| Production Capacity | 200-3000 kg/hr |
| Hammer Tip Speed | 80-100 m/sec |
| RPM Range | 1500-3600 RPM |
| Rotor Diameter | 200-760 mm |
| Number of Hammers | 8-48 pieces |
| Screen Hole Size | 1-40 mm (interchangeable) |
| Feed Size | Up to 100 mm |
| Final Fineness | 0.5-15 mm |
| Chamber Dimensions | 200x150 to 760x600 mm |
| Voltage | 220V/380V/415V, 3-phase |
| Material Construction | MS/SS contact parts |
| Machine Weight | 150-5000 kg (model dependent) |
Where it works
Applications & industries served
- Cattle & poultry feed
- Biomass & pellet plants
- Spices
- Grain milling
- Agro waste
Part of our solutions for
Answers
Frequently asked questions about Hammer Mill
What HP hammer mill is best for cattle feed grinding?
For small cattle feed operations, a 10-20 HP hammer mill (500-1000 kg/hr) is ideal. For commercial feed mills, our 50-100 HP models handle 2000-3000 kg/hr with interchangeable screens for different particle sizes.
Can your hammer mill grind biomass and agricultural waste?
Yes, our hammer mills efficiently process biomass materials like rice husk, corn stalks, wood chips, and crop residues for pellet making, composting, and biofuel applications.
What particle sizes can the hammer mill produce?
Our hammer mills produce particle sizes from 0.5mm to 15mm using interchangeable screens. This range covers fine flour grinding (0.5-1mm) to coarse cattle feed (5-15mm).
What is the price of a 10 HP hammer mill in India?
Pricing depends on HP rating, capacity, screen configuration, and material construction. As a direct manufacturer, we offer competitive factory pricing. Contact us for a model-wise price list.
