Metal Forming Equipment

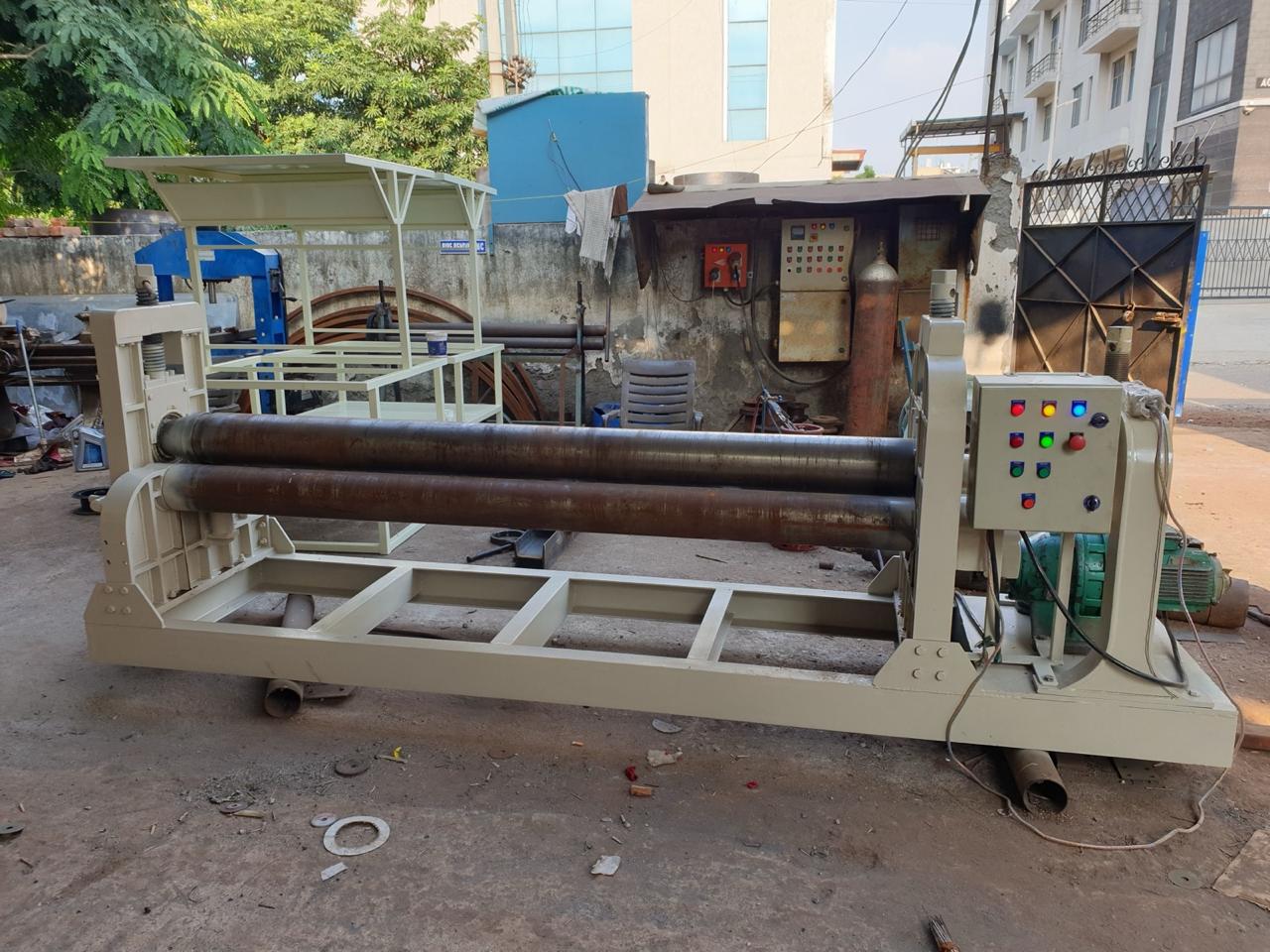

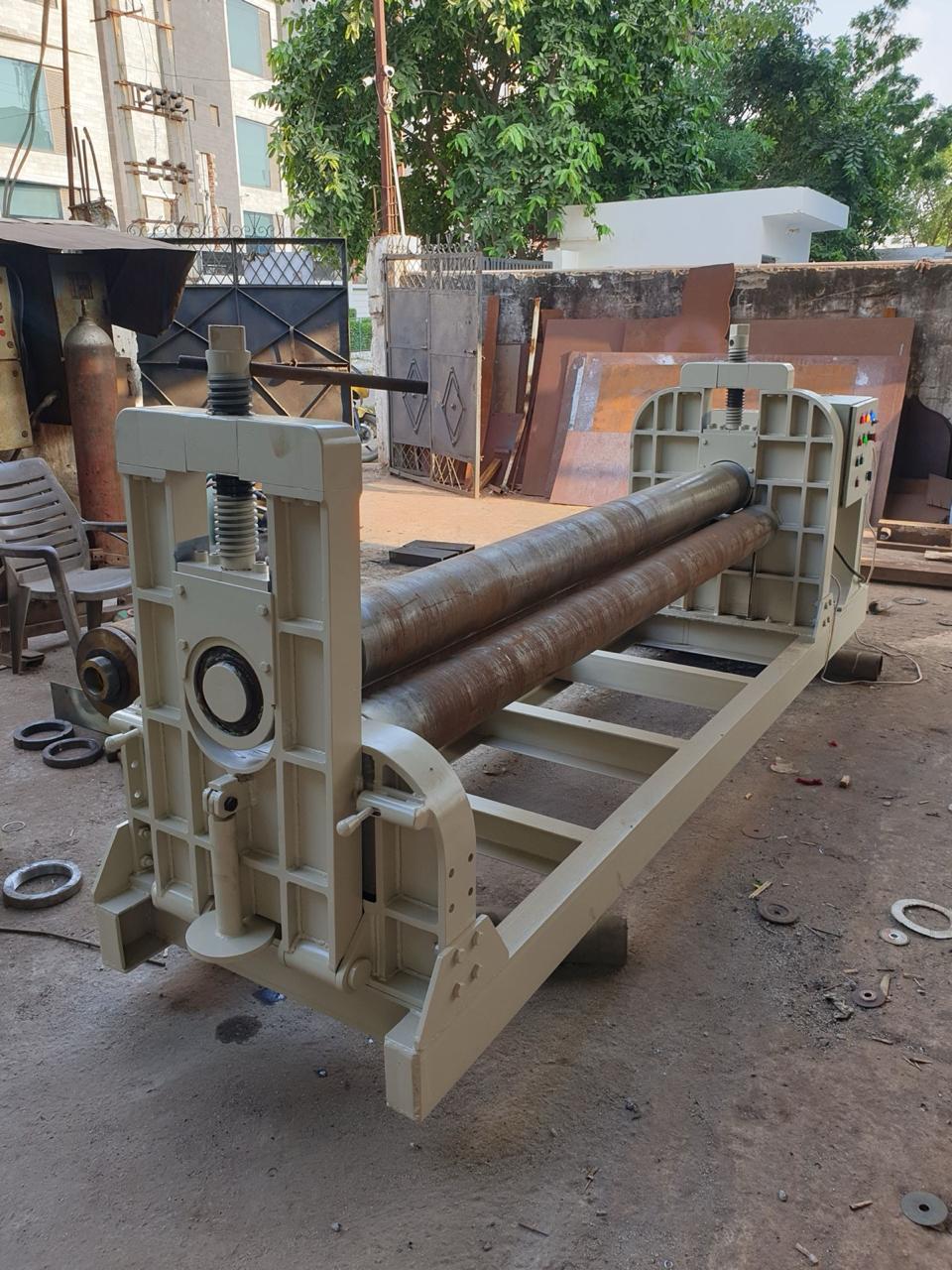

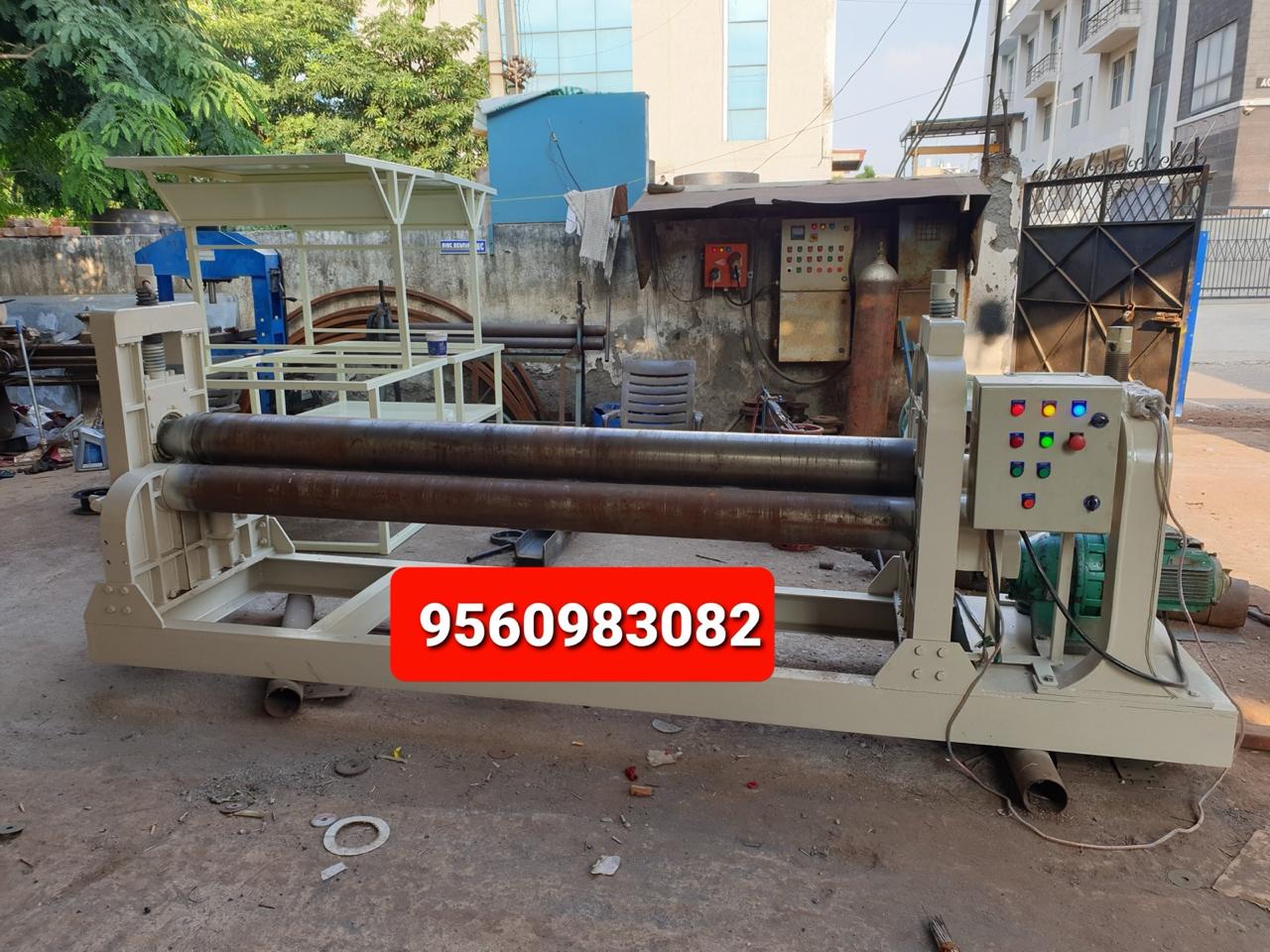

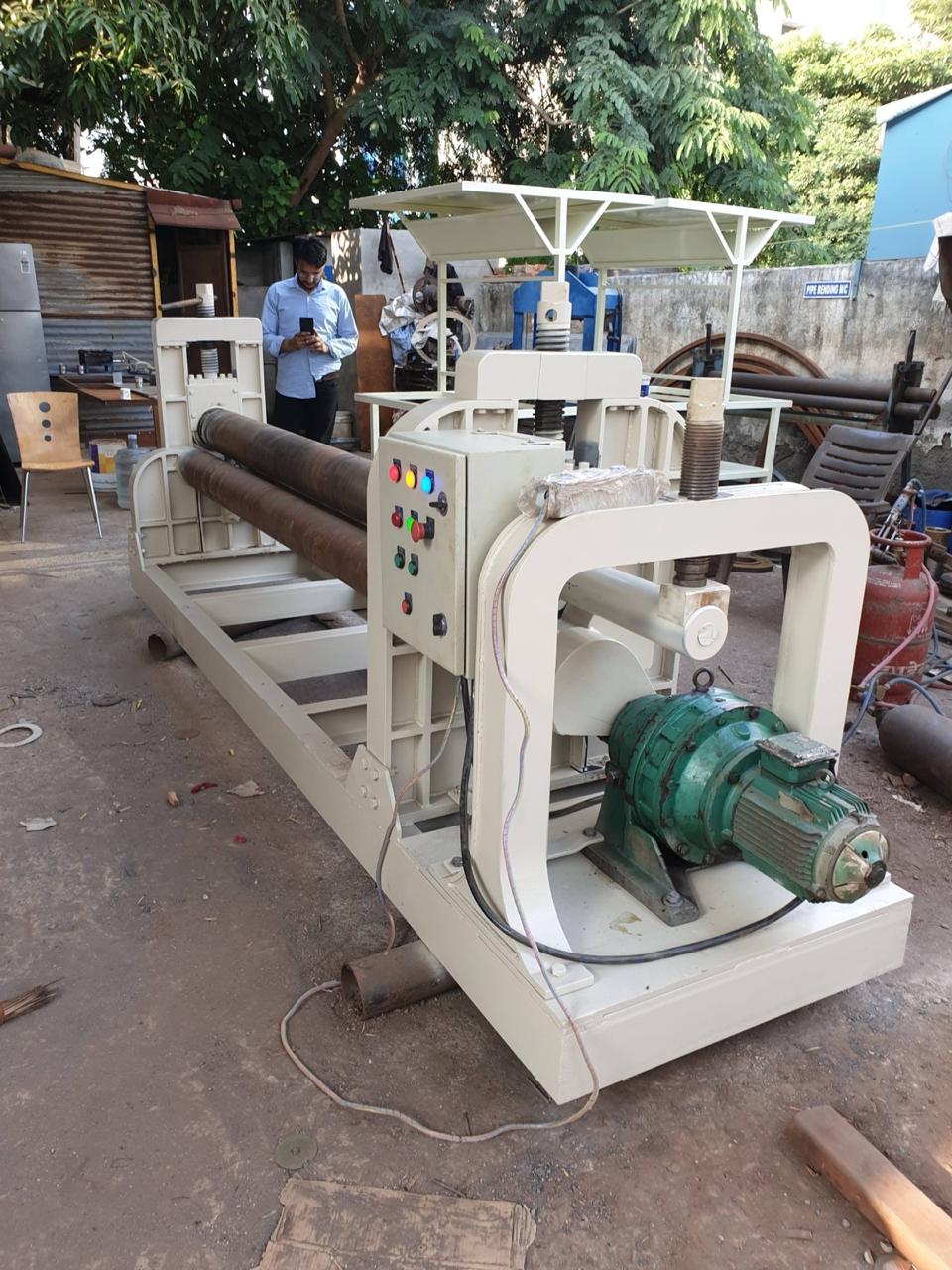

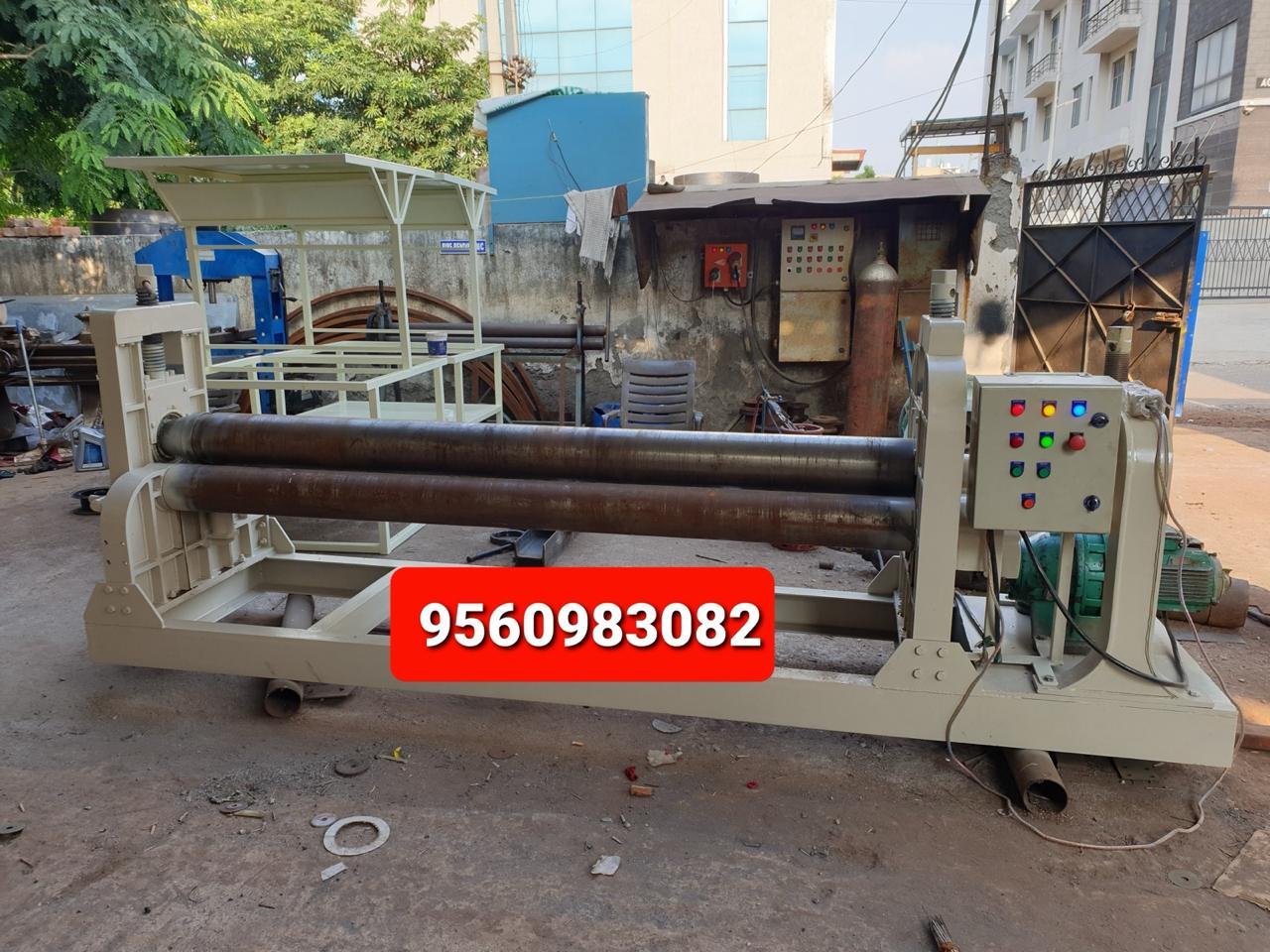

Sheet Rolling MachineManufacturer in Gurgaon, India
3-roll pyramid type for precise plate bending and forming
01 / 04
Quick answer
What is a sheet rolling machine?
A plate rolling (sheet rolling) machine bends metal plates into cylinders, cones and curves using three rollers. U.S.T Enterprises manufactures 3-roll pyramid plate bending machines for 3-50 mm plates and 1,500-6,000 mm widths, with pre-bending capability, for tank, pressure vessel, pipe, boiler and structural fabrication.
Sheet Rolling Machine - overview
Industrial Sheet Rolling Machine manufacturer in India. 3-roll pyramid type sheet rolling machine designed for forming cylindrical, conical, and curved shapes from metal plates. Features asymmetrical roller configuration with upper main drive roller and adjustable lower rollers for versatile plate forming applications.
- Max Plate Thickness
- 3-50 mm (model dependent)
- Max Plate Width
- 1500-6000 mm
- Min Rolling Diameter
- 300-1200 mm
Key features
- 3-roll pyramid type asymmetrical design for superior forming
- Upper roller main drive with vertical lifting capability
- Two lower rollers with independent horizontal movement
- Pre-bending capability for plate edge forming
- Heavy-duty cast iron frame construction
- Mechanical gear drive system for consistent torque
- Manual control with easy operation handles
- Hardened and ground roller surfaces for durability
- Wide range of plate thickness handling capability
- Emergency stop safety features
Talk to an engineer about this machine
Share your capacity and application - we reply within 24 hours.
Direct manufacturer
Built in IMT Manesar since 1970
Made to your spec
Capacity, MS / SS304 / SS316, automation
Pan-India installation
Erection, commissioning & training
Factory pricing
No middlemen, GST invoice
Datasheet
Sheet Rolling Machine technical specifications
Specifications vary by model. Custom sizes and capacities are available on request.
Last reviewed:
| Max Plate Thickness | 3-50 mm (model dependent) |
|---|---|
| Max Plate Width | 1500-6000 mm |
| Min Rolling Diameter | 300-1200 mm |
| Upper Roller Diameter | 150-670 mm |
| Lower Roller Diameter | 120-620 mm |
| Motor Power | 3-75 kW |
| Production Capacity | 1-6 ton/day |
| Plate Yield Limit | 245 MPa |
| Rolling Speed | 6 m/min |
| Machine Weight | 300-90000 kg (varies by model) |
| Operating Mode | Manual/Semi-Automatic |
Where it works
Applications & industries served
- Tank fabrication
- Pressure vessels
- Boilers
- Pipe making
- Structural fabrication
Part of our solutions for
Answers
Frequently asked questions about Sheet Rolling Machine
What plate thickness can your 3 roll bending machine handle?
Our 3-roll pyramid type machines handle 3mm to 50mm plate thickness with rolling widths from 1500mm to 6000mm. Motor power ranges from 3 to 75 kW based on capacity.
Can your machine roll both cylinders and cones?
Yes, our plate bending machines form cylindrical, conical, parabolic, and various curved shapes with pre-bending capability for edge forming — ideal for tank, vessel, and pipe fabrication.
Which industries use your sheet rolling machines?
Our machines serve pressure vessel manufacturers, tank fabricators, pipe makers, boiler manufacturers, wind tower producers, and structural steel fabrication workshops.
What determines the price of a plate bending machine?
Price depends on maximum plate thickness, rolling width, motor power, and hydraulic vs. mechanical operation. We manufacture directly in India, offering competitive pricing without import costs.
